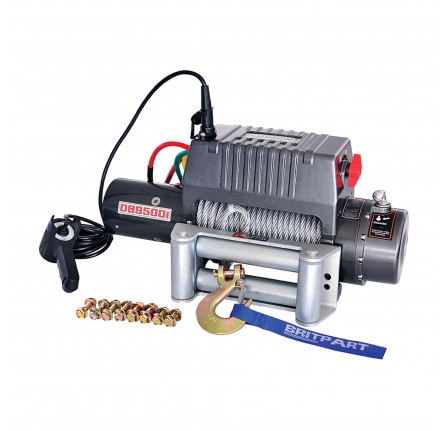

9500LB Britpart Electric Winch (4309KG) Motor Output 3.6KW (4.8HP) Maximum Line Pull/Motor Current 9500LBS (4309KG)/365A Part No. DB9500I

  • Order online today
  • International delivery available
  • Secure online payment
  • Available:
    This item is available for dispatch.
Now £393.12 exc. VAT
£471.74 inc. VAT
Shipping Dimensions:
  • Length: 63cm / 630mm
  • Width: 23cm / 230mm
  • Height: 38.5cm / 385mm
  • Courier Packing Size: 186 box3
  • Weight: 45.5kg
Found a discrepancy? Contact Us

9500LB Britpart Electric Winch (4309KG) Motor Output 3.6KW (4.8HP) Maximum Line Pull/Motor Current 9500LBS (4309KG)/365A DB9500I

Powerful and reliable electric winches.

If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.

These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.

Features
> 3.6Kw (4.8Hp) heavy-duty series wound DC motor
> Weather and dustproof contactor controls for longer life and improved amperage draw
> Planetary gear system for fast line speed
> Automatic load-holding brake
> Free spooling
> Power in and power out
> Low electric current
> Hardened drum
> 24 month warranty

Specification
Rated line pull - single line - 9,500lbs  /  4,309kgs
Gear reduction ratio - 212:1
Motor (series wound) - 4.8Hp  /  3.6Kw
Drum size (D x L) - 2.64 x 9"  /  67 x 228mm
Cable supplied - 0.43" x 91.9'  /  9.53mm x 30.5m - Galvanised aircraft cable with break force 14,4000lbs
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77"  /  548 x 167 x 299mm
Net weight - 94.8lbs  /  43.0kgs
Mounting bolt pattern - 10 x 4.5"  /  254 x 114.3mm

A full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.

Together with the winches you’ll be able to ‘Get to where you want to go!’

Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014

Which winch is for me? Discover more...

Winching safety Discover more...

9,500lbs

Steel cable

12 volt
