Swivel Kit Series 2A and 3 with Steering Arm At Bottom Part No. DA3181

  • Order online today
  • International delivery available
  • Secure online payment
  • Stock item:
    This item is available for dispatch.
Now £176.50 exc. VAT
£211.80 inc. VAT
Click and Fit Available
POA - Please contact us for a fitting price
Click for details & to book
Compatibility:
Shipping Dimensions:
  • Length: 26.5cm / 265mm
  • Width: 17.5cm / 175mm
  • Height: 19.5cm / 195mm
  • Courier Packing Size: 100.5 box3
  • Weight: 5.4kg
Found a discrepancy? Contact Us

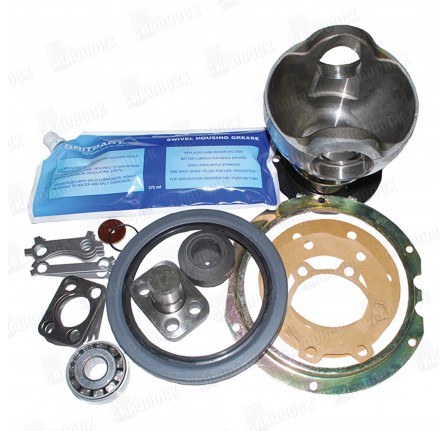

Swivel Kit Series 2A and 3 with Steering Arm At Bottom DA3181

Swivel housing kit
Series 2A
Series 3

Kit contents
539741 - Swivel housing - 1 ea
576583 - Swivel pin - 1 ea
539742 - Railko bush - 1 ea
FRC2906 - Thrust washer - 1 ea
217268 - Swivel pin bearing - 1 ea
531433 - O-ring - 1 ea
531001 - Lock washer - 4 ea
277311 - Locker - 3 ea
530984 - Shim for swivel pin - 1 ea
530985 - Shim for swivel pin - 1 ea
530986 - Shim for swivel pin - 1 ea
530987 - Shim for swivel pin - 1 ea
RTC3528 - Oil seal - 1 ea
277289 - Joint washer - 1 ea
232413 - Joint washer - 1 ea
231505 - Joint washer axle - 1 ea
235968 - Retainer for oil seal - 1 ea
STC3435S - Swivel housing grease sachet - 1 ea

Corroded, worn or leaking swivel housing?

This swivel housing kit from Britpart is a convenient way to ensure you have all the quality parts needed to replace your Land Rover's swivel housing. Each kit is for one side only.

Kit contents -
Swivel housing
Swivel pin
Railko bush
Thrust washer
Swivel pin bearing
O-ring
Lock washer
Locker
Shims
Oil seal
Retainer for oil seal
Joint washers
Swivel housing grease sachet

  • Series 2A
  • Series 3
