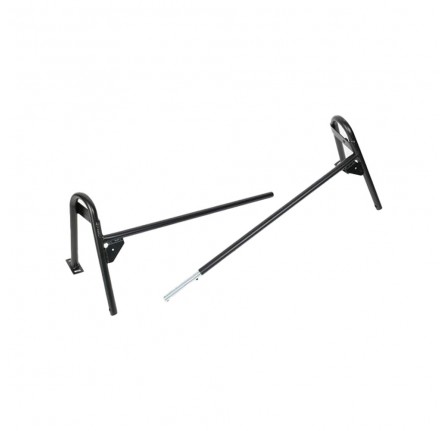

Exmoor Soft Top Seat Belt Mounting Bar Use with Belts EXT001-8 and EXT001-7 Part No. EXT500-1

  • Order online today
  • International delivery available
  • Secure online payment
  • Stock item:
    This item is currently available.
Now £161.72 exc. VAT
£194.06 inc. VAT
Compatibility:
Shipping Dimensions:
  • Length: 140cm / 1400mm
  • Width: 30cm / 300mm
  • Height: 40cm / 400mm
  • Courier Packing Size: 280 box3
  • Weight: 4.58kg
Found a discrepancy? Contact Us

Exmoor Soft Top Seat Belt Mounting Bar Use with Belts EXT001-8 and EXT001-7 EXT500-1

Features and Fitting

The soft top seat belt bar is designed to allow for easy fitting of 3 or 4 point inertia seat belts that no longer have a high mounting point available, especially if you have converted from a hard top to a soft top.

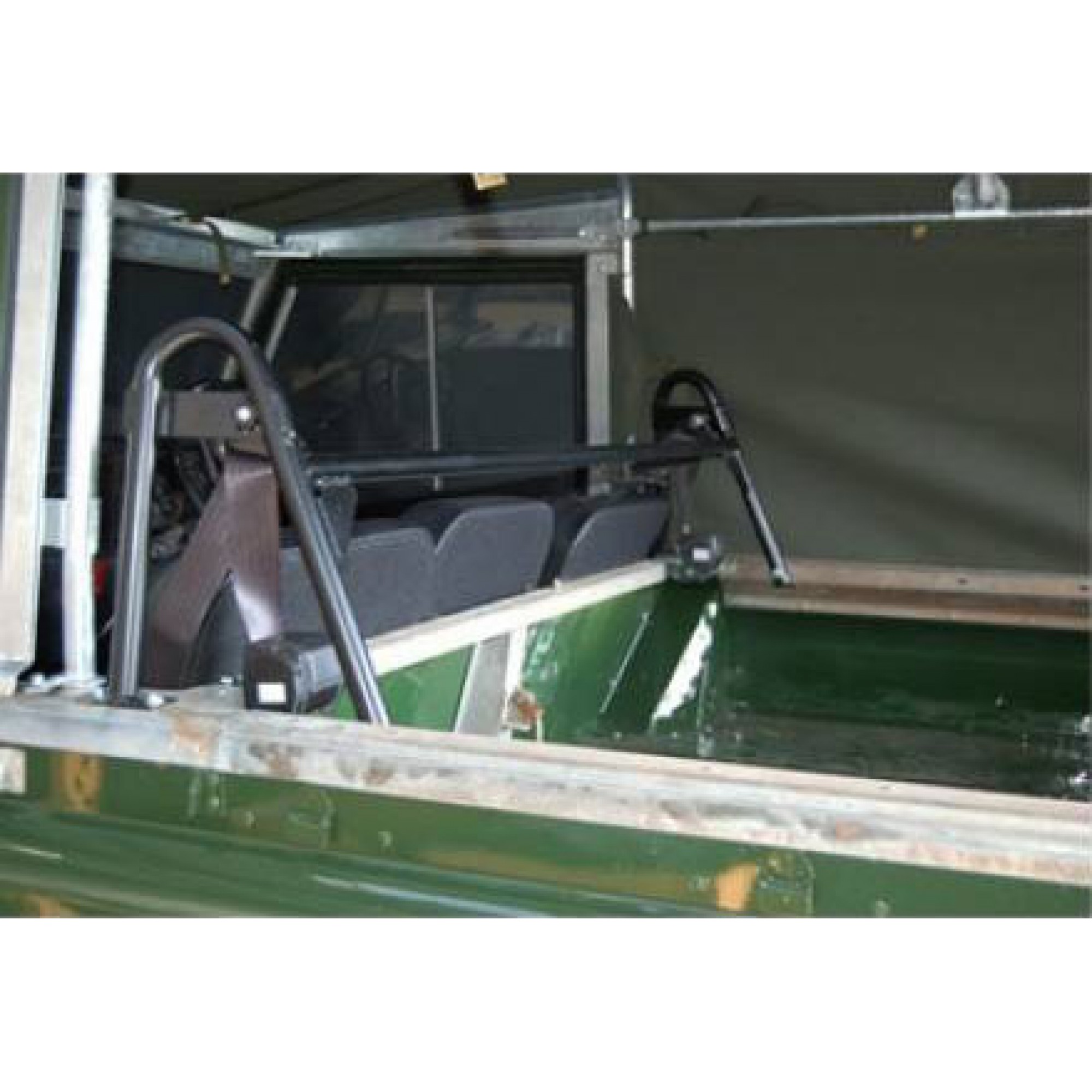

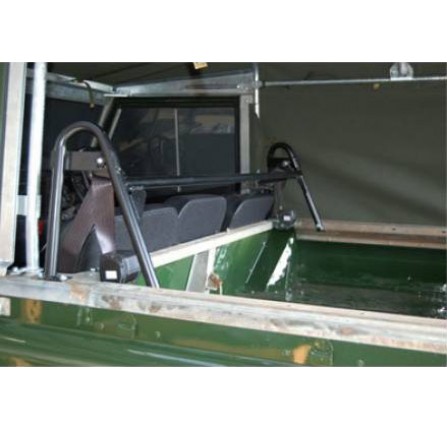

To install, simply locate the outer flat plates onto the top body capping as shown in images below and line up the rear bar with the side capping point. Drill and bolt into place either side to create a top mounting.
If you require a new seat belt you will need a 4 door front inertia belt to do this job properly and NOT a 2 door belt. The brackets you require are correct on the 4 door inertia belt. Exmoor part no.EXT001-8 =LH or EXT001-7=RH

The inertia reel mounts to the lower point and shown with the top buckle above.
