TRX-4M DEFENDER 1:18 RC MODEL
Code: DA3643
1:18 scale Defender RC model
Grey
MODEL 97054-1: TRX-4M Scale and Trail Crawler with Land Rover Defender Body: 1/18 Scale 4X4 Trail Truck, Fully-Assembled, Ready-To-Drive, with TQ 2.4GHz 2-channel Transmitter, and ECM-2.5 Waterproof Electronics.
Whats In The Box:
TRX-4M Ready-To-Race model
Licensed ABS hard body
Titan 180 87-turn motor
ECM-2.5 Electronic Control Module
TQ transmitter
7.4 volt 750mAh 2-cell LiPo battery
2-amp USB fast charger with iD
High quality maintenance tools
What Youll Need:
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
Vehicle Spec

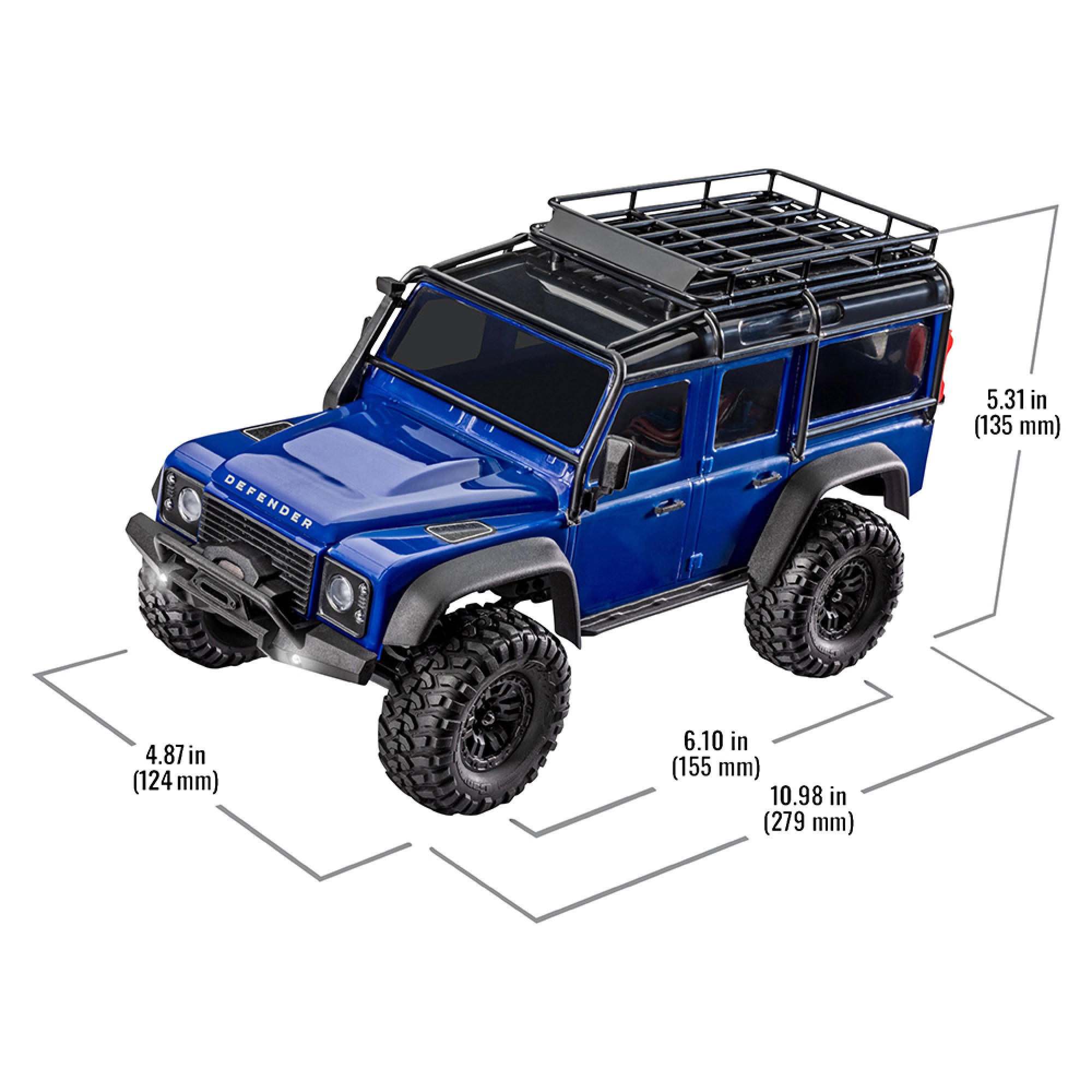

Length: 279mm
Front Track: 124mm
Rear Track: 124mm
Ground Clearance: 29mm
Weight (w/o battery): 483g
Height: 135mm
Wheelbase: 155mm
Approach Angle: 52
Breakover Angle: 45
Departure Angle: 41
Shock Length (front and rear): 51mm
Hex Size: 7mm
Wheels (front and rear): 25.4 x 12.5mm
Tyres (front and rear): 57 x 25.4mm
Electronic Control Module: ECM-2.5 (Combo ESC, Receiver, Lighting Control*)
Motor (electric): Titan 180 87T
Differential Type: Fully Locked; 2:1 Axle Ratio

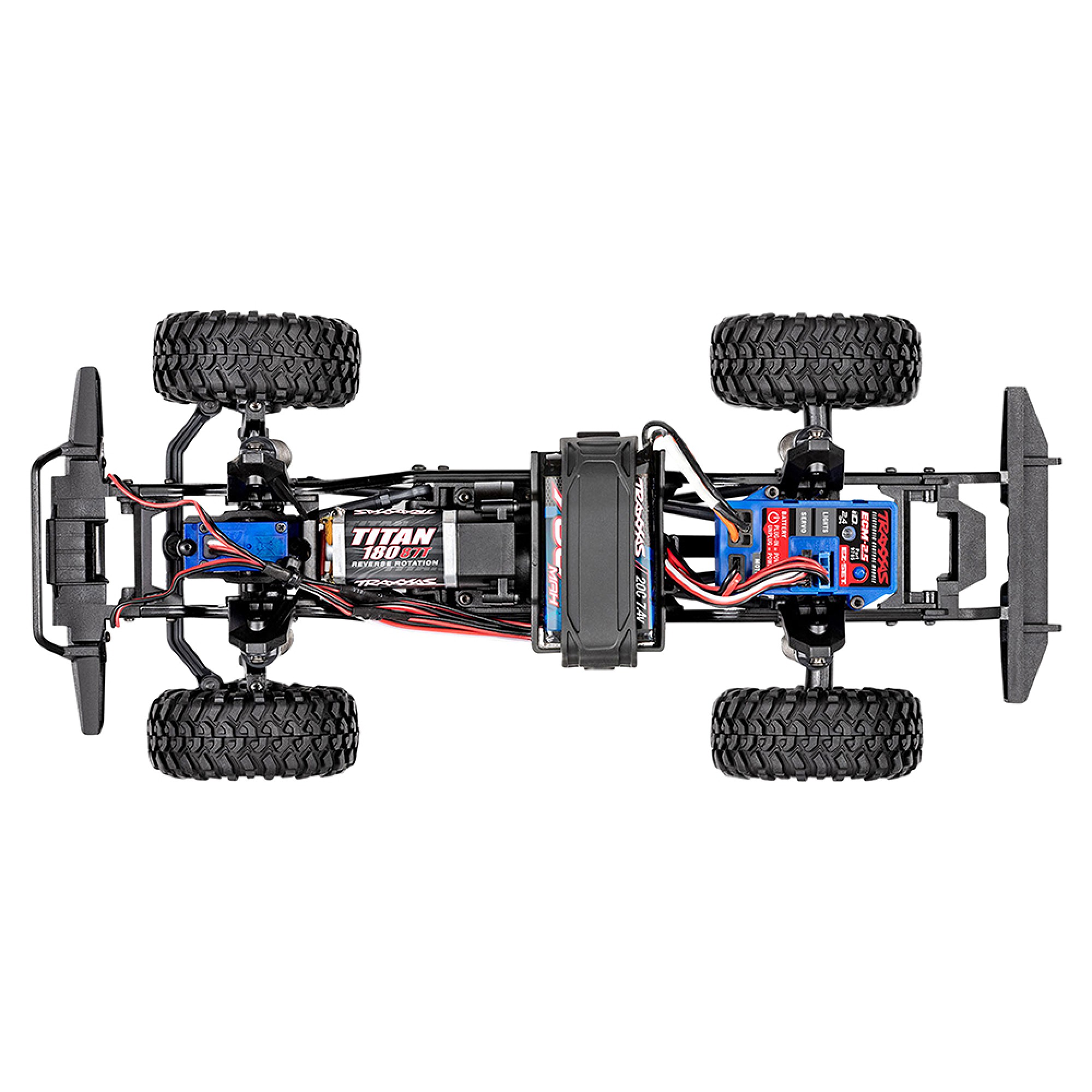

Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic Hill Hold
Drive System: Shaft-Driven 4WD
Steering: Axle-Mounted Servo
Radio System: TQ 2.4GHz 2-Channel Transmitter
Servo: #2065T Heavy-Duty Waterproof
Skill Level: 1
Battery Tray: 50.5mm L X 31mm W
*Requires accessory Pro Scale LED Light Kit, sold separately
Motor Spec
Type: High-torque brushed motor
Size: 180
Weight: 33g (1.16oz)
Dimensions: 1.66 (42mm) overall length, 1.34 (34mm) can length, 0.81 (21mm diameter)
Turns: 87T reverse rotation
Voltage: 8.4V
ECM Specs
Input Voltage: 2s LiPo
Case Size: 1.26in W x 1.79in D x 0.60in H
Weight: 0.92oz (26g)
BEC Voltage: 6.0 VDC
BEC Current: 1A
Low Voltage Detection (LVD): 2-Stage
Transistor Type: MOSFET
Motor Overload Protection: 2-Stage
Profile Selection: Sport Mode: 100% FWD, 100% Brakes, 100% REV
Trail Mode: 100% FWD, 100% Brakes, 100% REV, Trail-Tuned Brake on Neutral
Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Features
Clipless ABS Body
> Highly-detailed licensed bodies
Molded-in color wont chip or flake
Tough fender flares and rock sliders
Realistic side mirrors, door handles, & wipers
LED bumper lights
> Heavy-duty latching clips
Hold tightly on the trail
Release in just seconds
ECM-2.5 Electronic Control Module
> Incorporates ESC, receiver, and LED controller in one chassis
> Fully waterproof for all-weather fun
> Three drive profiles
Sport Mode forward / brake / reverse
Trail Mode forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode forward / instant reverse - no neutral with 100% hill holding brake
> Traxxas EZ-Set one-button setup
> Built-in Pro Scale LED functionality
> Two-stage low voltage protection (LVD)
> Motor overload protection
TQ 2.4GHz Transmitter
> Full-size 2-channel transmitter
> All-day comfort with precise long-range control
Motor
> Powerful Titan 87-turn brushed motor
> Fixed gear mesh doesnt require adjustment
> Forward mounting position for improved crawling dynamics
Heavy-Duty Steel Ladder Frame
> Deep C-channel design
> Thicker center section for maximum rigidity
> Rails run from bumper to bumper
Drivetrain
> Full-time shaft-driven 4-wheel drive
> Solid steel axles
> Spool-equipped front and rear axles
> Heavy-duty CV center driveshafts
Low-CG Battery Tray
> Concentrates weight lower for improved stability
> Wide rubber strap secures battery in place
Steering
> Heavy-duty 2065T steering servo
Metal main gear
> Superior 45 steering angle
> Direct steering (no servo saver)
Suspension
> Triangulated 4 link front and rear
> Heavy-duty rod ends
> Oil-Filled GTM Shocks
> Provides smooth controlled damping
> Realistic driving body movements
> Adjustable pre-load spacers
> Easily refreshed with available rebuild kits
Wheels and Tyres
> Highly-detailed 1 Replica wheels
7mm hex
> Pre-mounted tires - Canyon AT
> Trail-tuned rubber compound
Battery and Charger Included
> High-capacity 2-cell LiPo battery
7.4 volts
750mAh for over an hour of run time
> 2-amp USB-powered fast charger
> iD technology for faster, safer charging
Low-Maintenance Self-Lubricating Bushings
Durable Hex hardware
