ARB Intensity 7 Inch Spot Lamp Version 2 Part No. AR21SV2

  • Order online today
  • International delivery available
  • Secure online payment
  • Stock item:
    This item is currently available.
Now £402.00 exc. VAT
£482.40 inc. VAT
Compatibile with all Land Rover and Range Rover models
Shipping Dimensions:
  • Length: 25cm / 250mm
  • Width: 16cm / 160mm
  • Height: 30cm / 300mm
  • Courier Packing Size: 112 box3
  • Weight: 2.99kg
Found a discrepancy? Contact Us

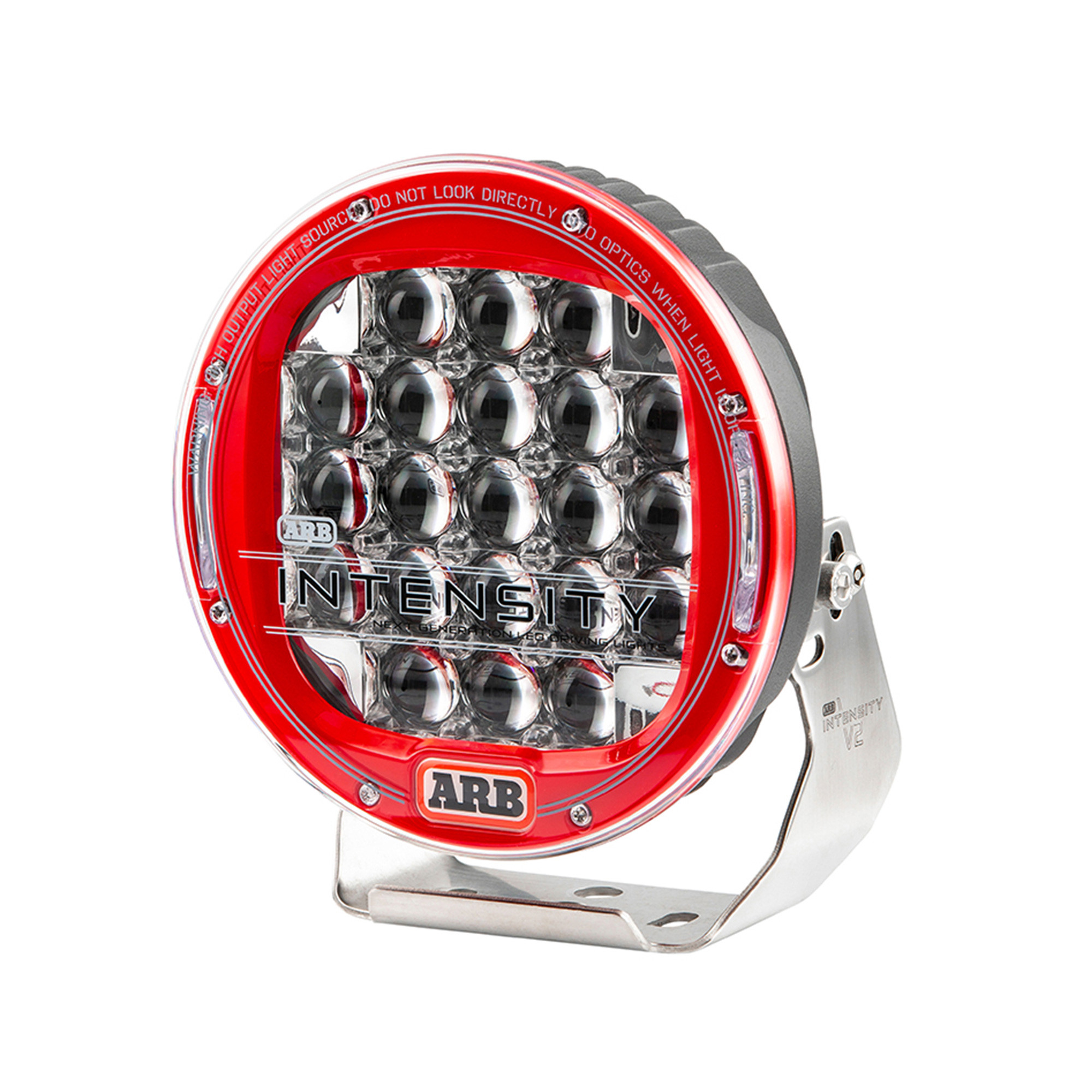

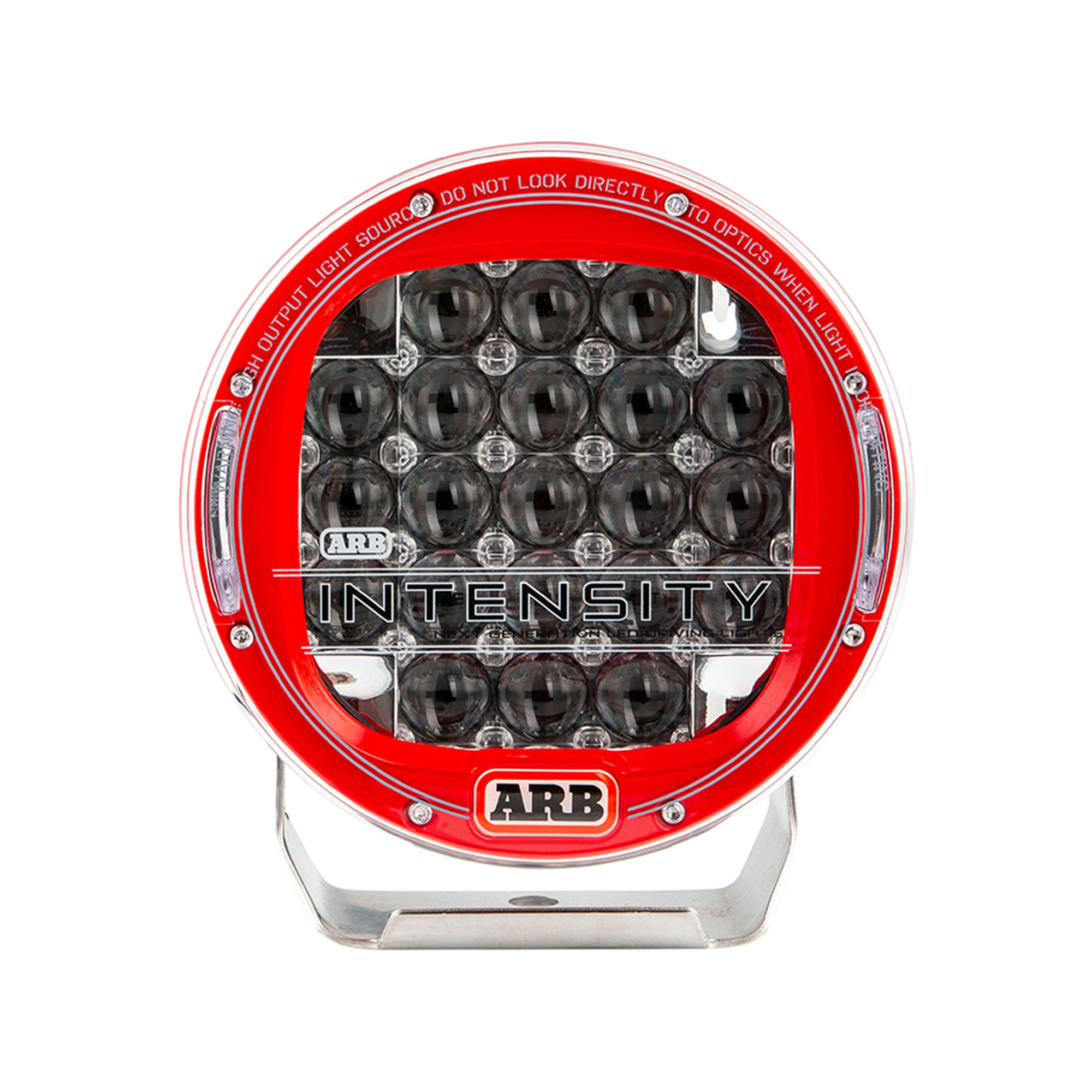

ARB Intensity 7 Inch Spot Lamp Version 2 AR21SV2

Spot light

21 LEDs

High pressure cast aluminum body

Virtually indestructible polycarbonate lens Hard-Coated, durable poly carbonate protective cover

21 high powered OSRAM square LEDs

Hyperspot LED technology for spot configurations

50,000hrs lifespan

Gore-Tex breather with pressure tested seals

Reverse polarity voltage protection

MIL810-STDG vibration certified (Exceeds Military spec)

ROHS compliant

Dust and waterproof to IP68

Submersible to 3M

Over and under voltage protection

Integrated Intelligent thermal management system

Protected against radio frequency interference (RFI) and electromagnetic (EMC) interference

Multi position stainless steel mounting brackets.

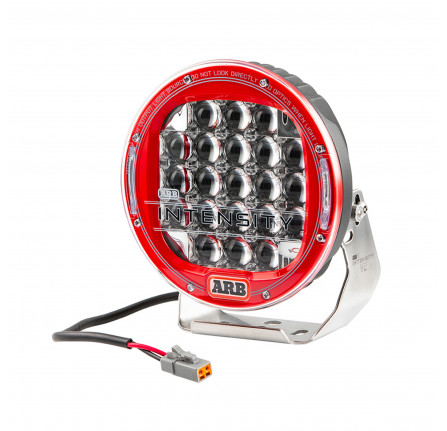

Deutsch DTP connector

3000hr Automotive paint testing

Suitable for use with ARB wiring loom Part No# 3500480

Technical Specifications - AR21V2:

High output OSRAM square 150 LEDs

13,170 Raw Lumens for the AR21V2 spot and Flood

5,760 Effective Lumens Spot

10-36 voltage spectrum

105 watts of power
7.3A @ 14.4V

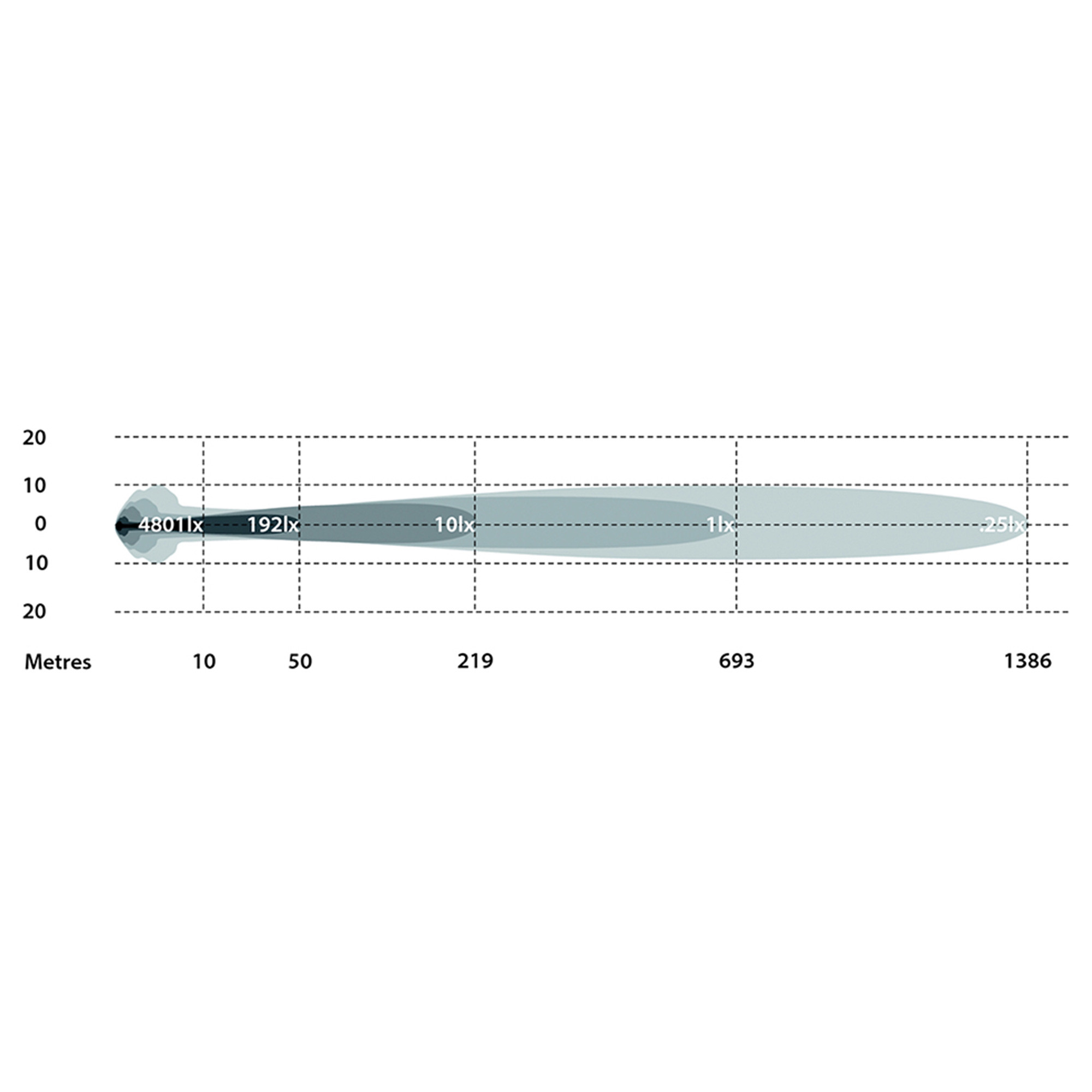

1 Lux @ 693m spot and 1 Lux @ 555m

6 degree Spread for Spot

Input Cable Length 450mm

Operating Temp -40C to 63C (Tested to Exceed 90C)

5700K Color Temp


High Pressure Cast Aluminum Body

Active Thermal Management Control

Dimensions - 190.5mm x 212.5mm x 115.6mm

Warranty 2 years

Driving lights Include:

- 1 x Spot Light
- 1 x Clear Cover
- 1 x Stainless steel mounting
