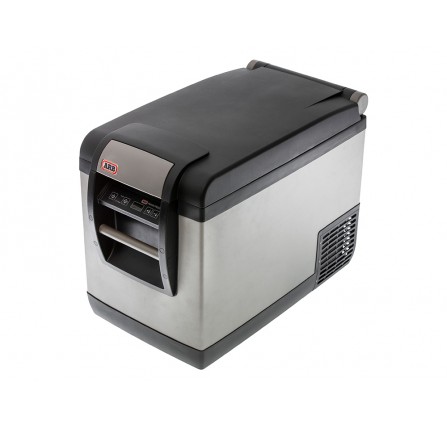

Fridge 47L Classic Series 2|PLUG F Eu Part No. 10801473

Fridge 47L Classic Series 2|PLUG F Eu 10801473

47 litres / +10C to -18C / With App Control

Suitable for many medium to large SUVs, the class leading 47L ARB Fridge Freezer is your perfect travelling companion.
47 litres (72 x 375ml cans)
Weight - 22.5kg
External dimensions - 508mm (H) x 380mm (W) x 705mm (D)
Internal dimensions -
Fruit & Dairy Compartment: 206mm (H) x 285mm (W) x 151mm (D)
Main Compartment: 401mm (H) x 285mm (W) x 337mm (D)
Power - Built-in 12/24V DC and 100-240V AC power with integrated battery protection system

Internal features
> Dairy compartment - optimised internal capacity includes separate compartment for fruit and dairy products.

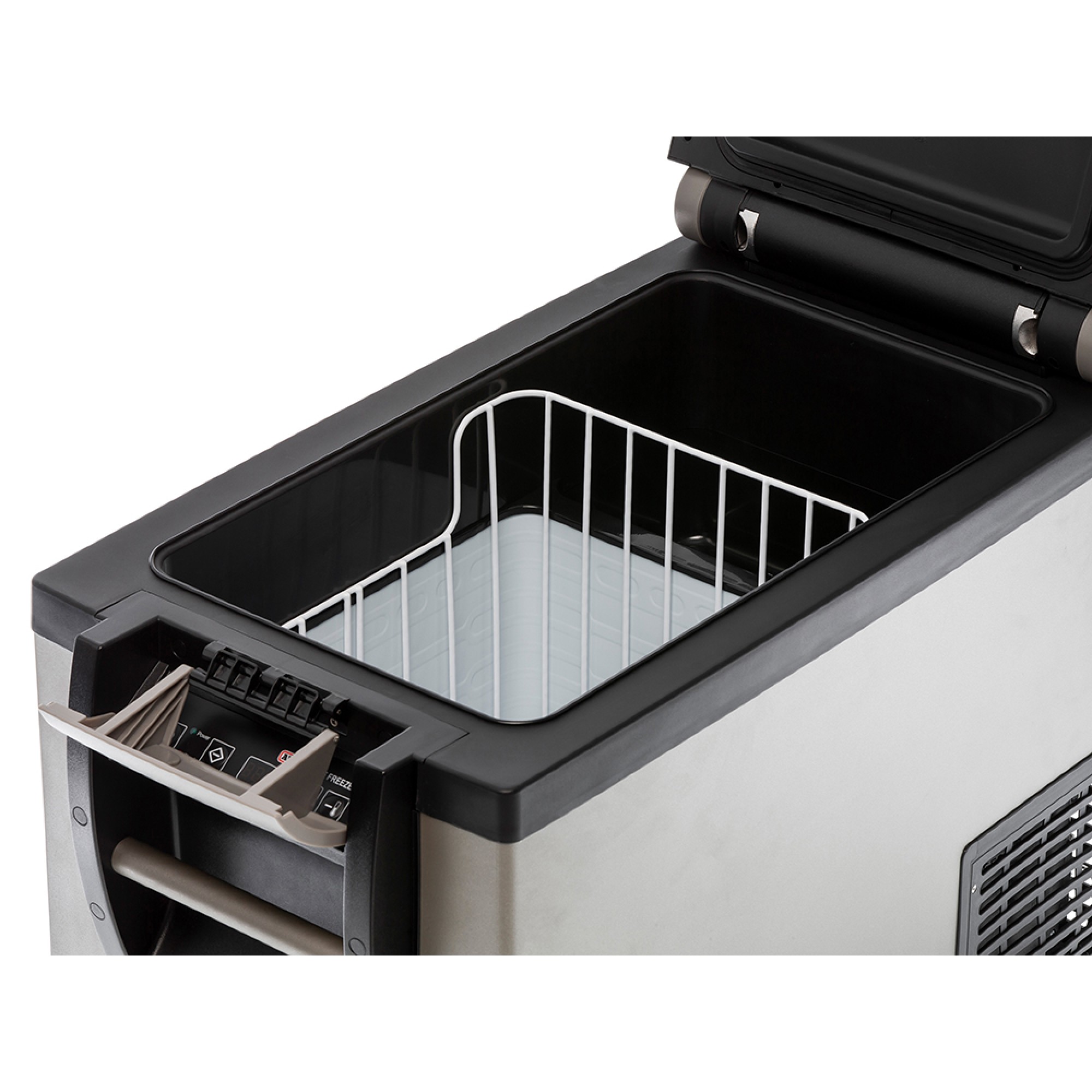

> Reversible basket with divider - multiple storage options by separating contents or alternatively allowing longer items to be positioned along the length of the cabinet.

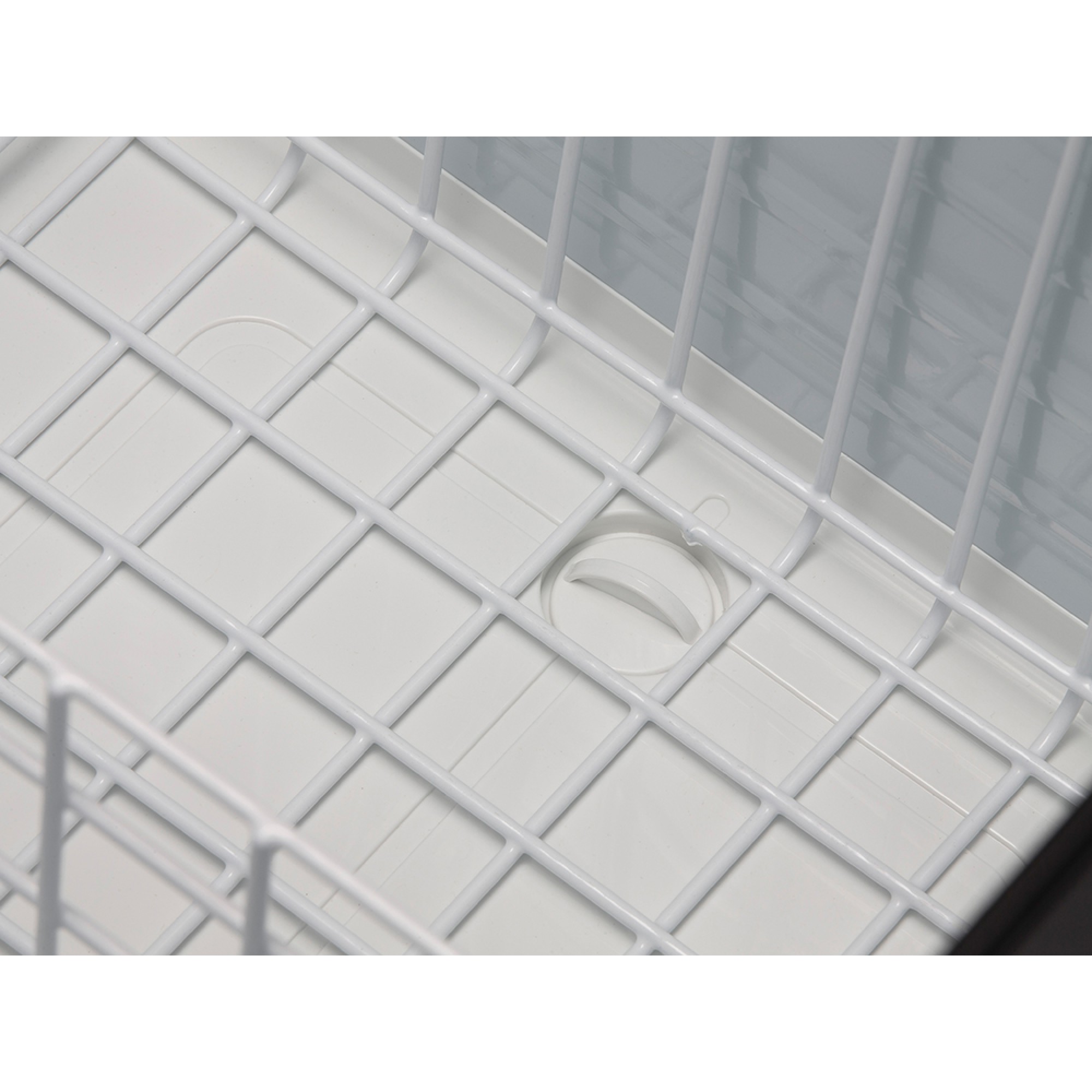

> Drain plug - integrated into base for effortless cleaning.
> Integrated evaporator - designed as an integral part of the interior cabinet, ensuring simplified cleaning and optimum use of internal storage space.

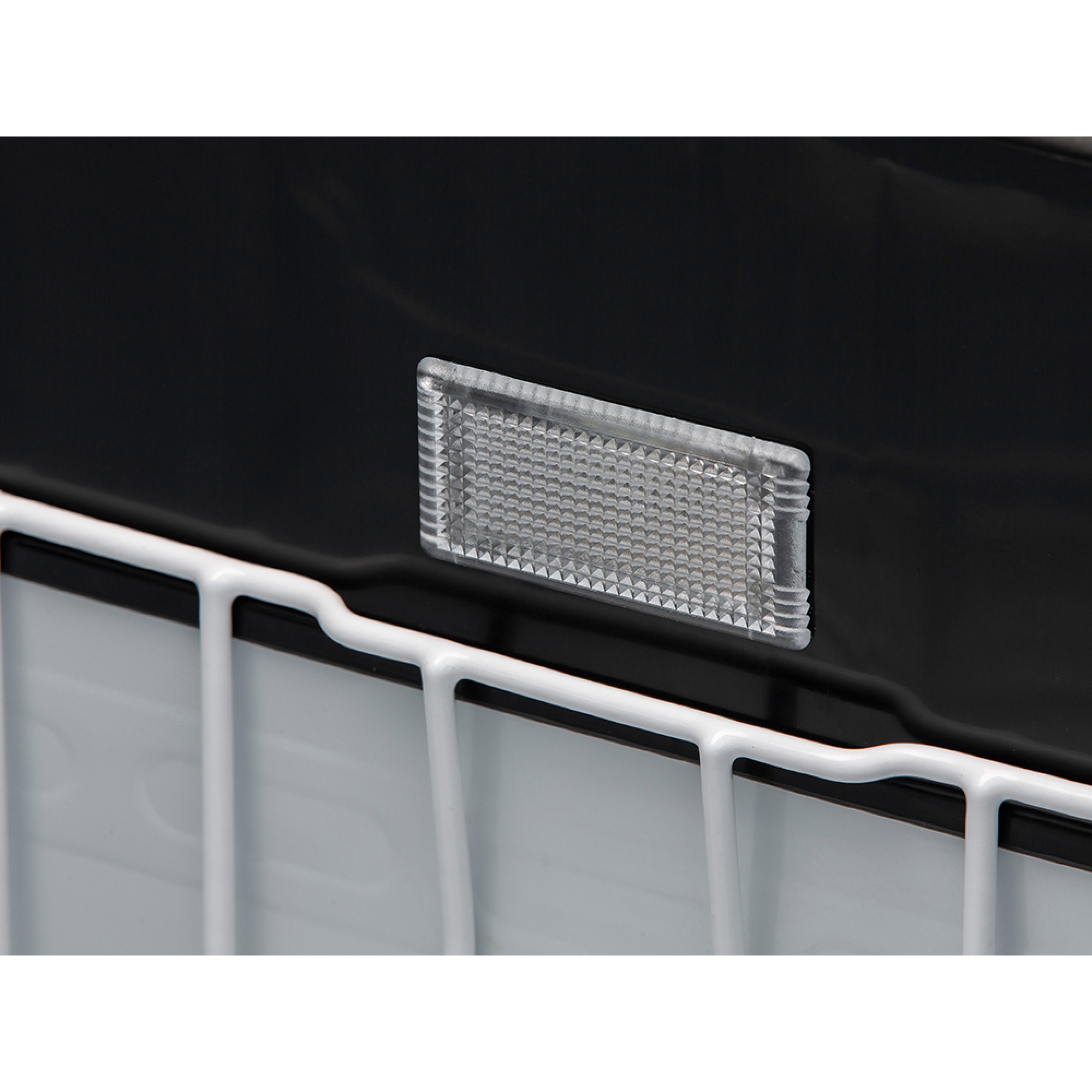

> Internal LED light - low power draw LED light with magnetic switch turns off when lid is closed.

External features

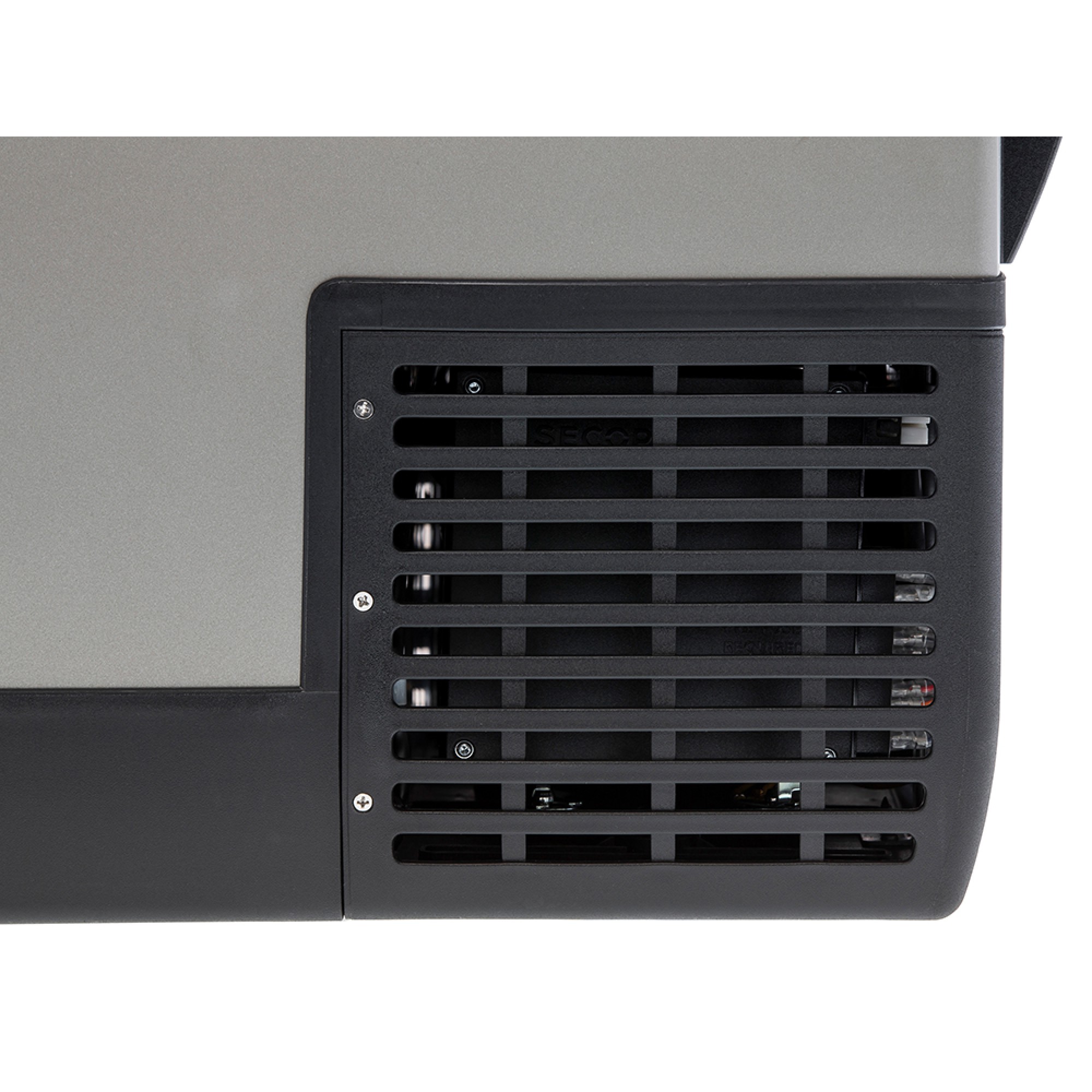

> Secop compressor - highest quality, Secop Compressor with smart electronic control system enables rapid cool down to target temperature.
> Durable detent hinge - stainless steel detent hinge ensures the lid can be easily released and securely slid back into place.

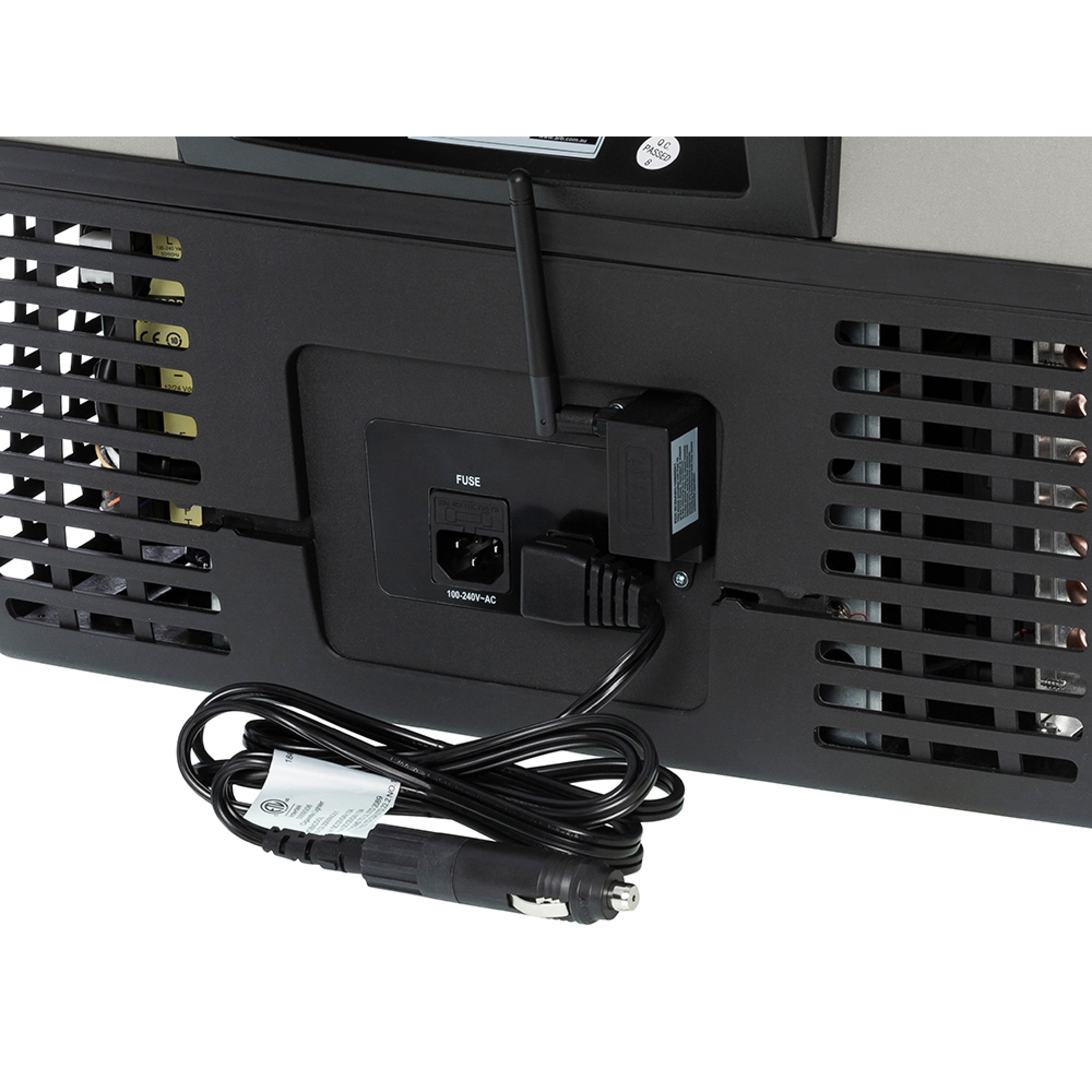

> Rear clips - rear clips secure 12/24v and 100-240v cables, preventing the plug from being accidentally disconnected.
> Lid with integrated seal - tough, two piece injection moulded lid incorporates a recessed seal, preventing excessive wear and damage.
> Front latch - simple to use, large over-centre cam lock latch provides a positive seal between the lid and cabinet for maximum cooling efficiency.

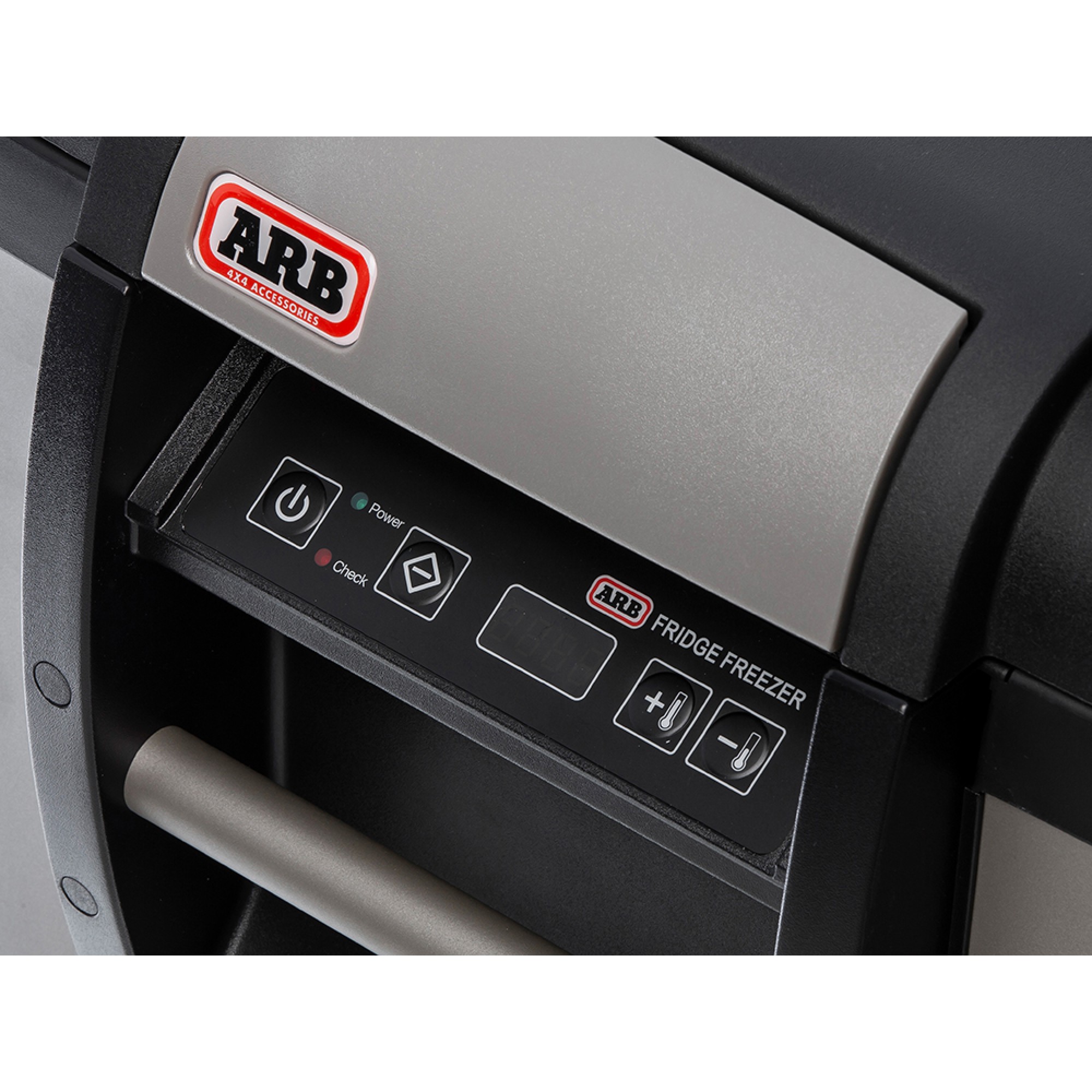

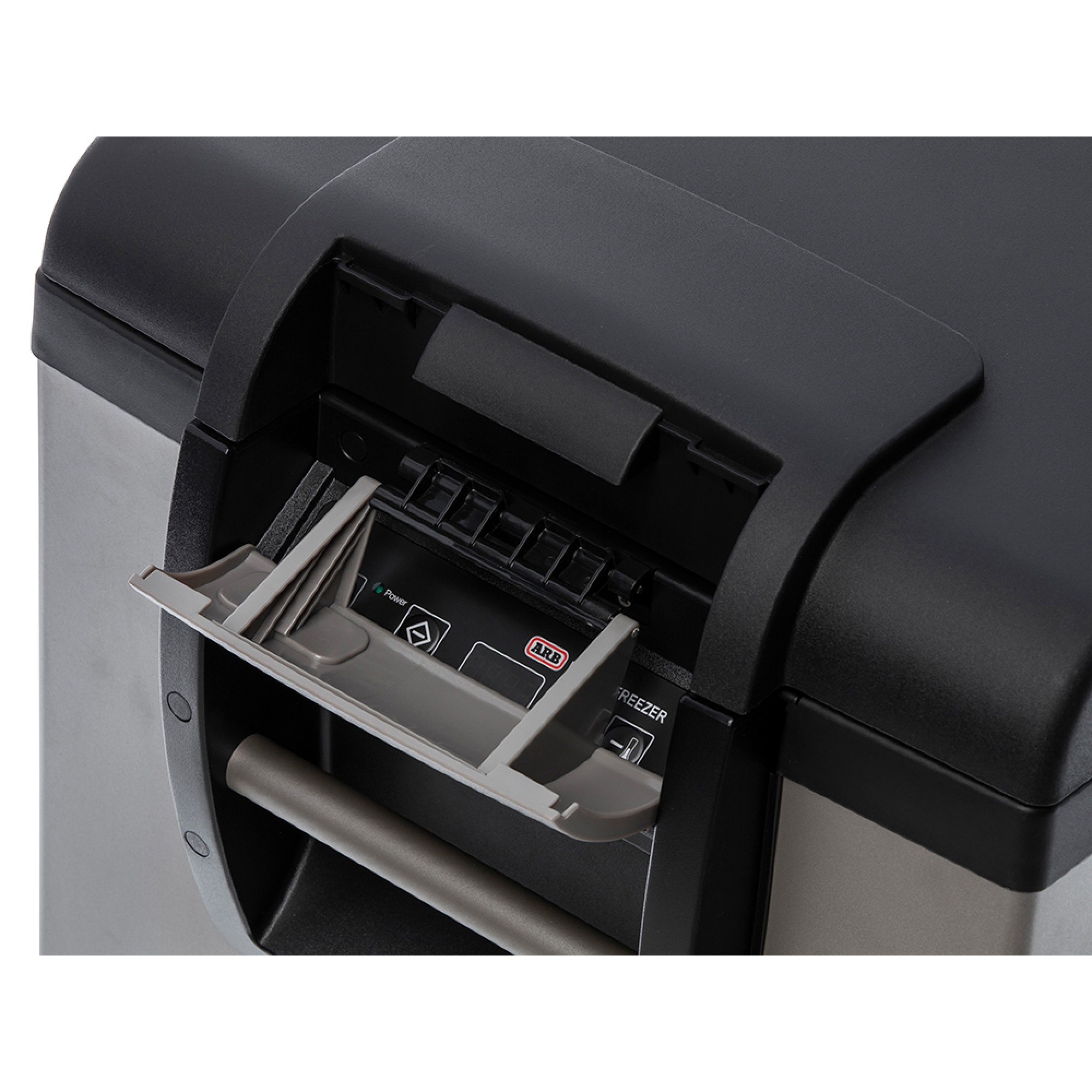

> Control panel - easily accessible, recessed front control panel with maintenance-free digital temperature display (no dedicated battery required).
> Recessed handles - powder coated steel handles, engineered to double as tie down points.
> Durable case - powder coated, robust zinc steel cabinet sides designed to withstand extreme off road conditions.
> Rubber feet - integrated into base for increased grip and stability.

Can be paired with
> Canvas Transit Bag - 10900042
> Remote Fridge Freezer Monitor - DA8933
> Full Extension Fridge Freezer Slide - 10900029
> Fridge Freezer Slide - 10900021
> Fridge Freezer Tie-Down Kit - 10900010

Whats New? Its all about the looks.

> Colour scheme inspired by ARB Jack, the gun-metallic colour really highlights the metal body of the Fridge Freezer whilst the black plastics offer a smart & sleek contrast
> Electronic updates

- Backlit control panel buttons for ease of use at night time or in low light situations
- Dimmable display for customization
- 12V power input display to assist with monitoring battery condition

> Communication A new transmitting module has been introduced that utilises Bluetooth connectivity allowing both monitoring and control of your Series 2 Fridge/Freezer. Whether youre in the drivers seat or relaxing in your camp chair, keeping an eye on the temperature of your beers has never been so easy it can all be done on your Apple or Android Smartphone or ARB LINX device. For existing ARB Fridge Freezer customers, the new transmitter is also backwards compatible on any ARB Fridge Freezer manufactured post 2014 however, functionality is limited to display only as indicated below. The app can be downloaded for free from the Google Play or App Store

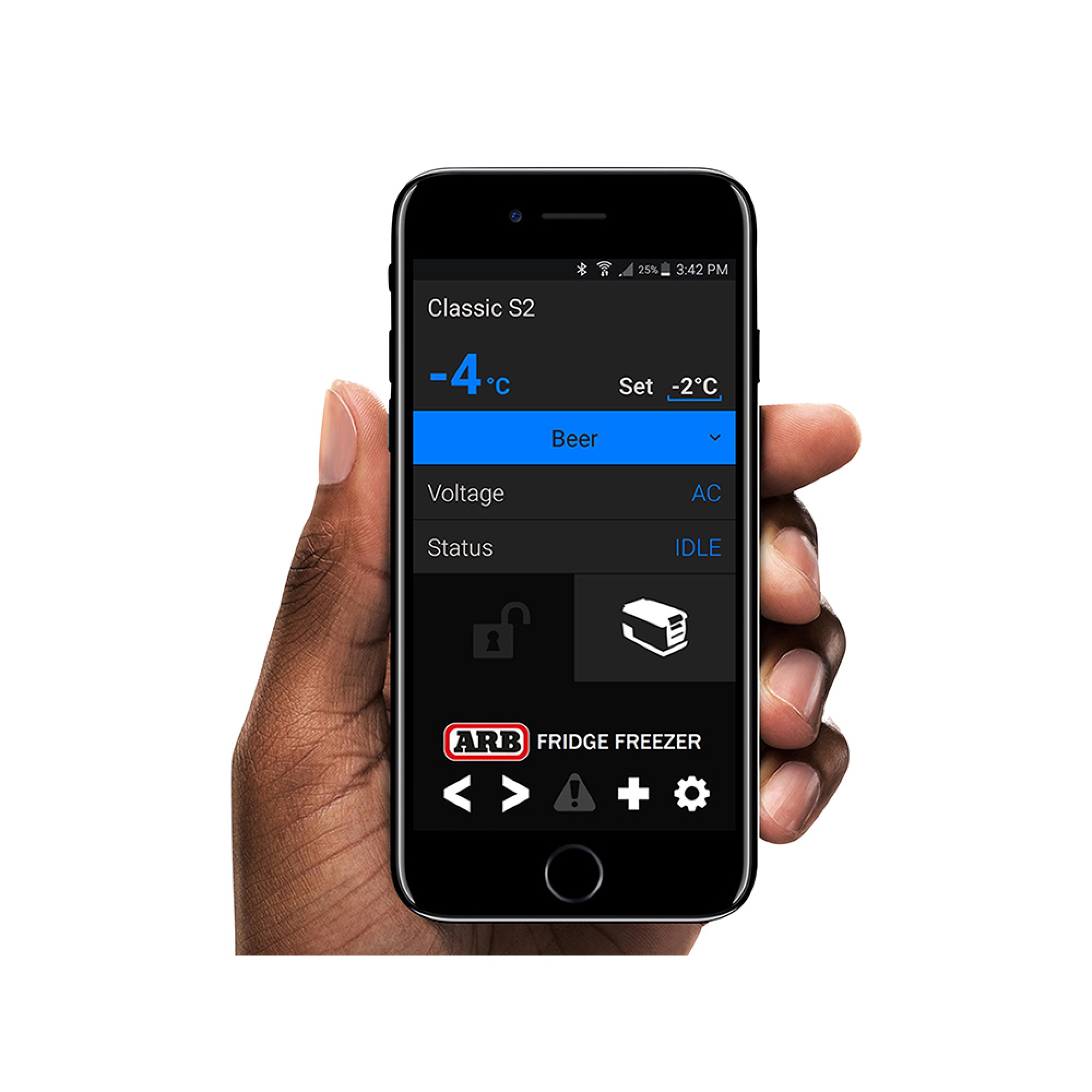

> Apple/Android App or LINX the newly developed app offers an array of functionality such as;

App Display (available on Classic Series 1, Elements & Classic Series 2 as indicated):

- Fridge Freezer name (available on Series 1, 2 & Elements)
- Target temperature setting (available on Series 1, 2 & Elements)
- Cabinet temperature (available on Series 1, 2 & Elements)
- Customised temperature settings (only available on Series 2)
- Power input (available on Series 1, 2 & Elements)
- Fridge Freezer compressor status (available on Series 1, 2 & Elements)
- Lid open visual warning (only available on Series 2)
- Fridge Freezer system errors displayed as a app pop-up message (available on Series 1, 2 & Elements)

App Control (only available on Classic Series 2):

- Settings can be adjusted from the app such as; battery protection, units (C orF), display brightness, pre-set temperature settings, Fridge Freezer name
- Target temperature can be manually adjusted or altered via pre-sets
- Fridge Freezer can be put into standby
- Multiple fridges can be added

> LINX In order to access the App on any LINX display, simply update to the latest version 1.4 or above and activate the Fridge Freezer Module on the main icons screen

Whats Carry Over? Same fridge, new look

> Dimensions all exterior and internal dimensions remain the same as the series 1 Fridge Freezer
> Performance weve carried over the trusty performance of the series 1 Fridge Freezer utilising the existing compressors & associated cooling components
> Functionality all the existing features and benefits such as removable lid, reversible basket, mounting points etc are carry-over from series 1.

Accessory Part Numbers

With the exception of the new range of Transit Bags and App Connect Module, all other Classic Fridge Freezer accessories are carry-over. The Fridge Freezer App Connect Module is included free with every Classic Series 2 or Elements Fridge Freezer sale and is also available for individual sale for existing Fridge Freezer customers.
