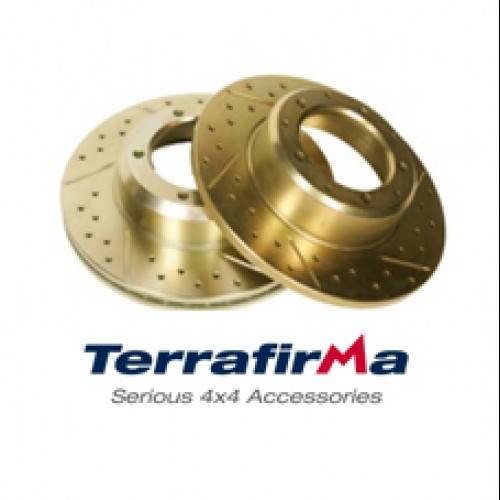

Terrafirma brake discs offer increased bite from cold and excellent fade resistance in most 4WD braking applications. Whether its a steep rocky descent, ploughing through mud and water or just daily driving, these brake discs will give excellent stopping performance in all conditions.
Grooves are machined into the brake disc to force away the dust and gasses that build up between the pad and disc, keeping the brakes cooler and reducing fade. The cross drillings contribute to cooling and heat dissipation and also allow the gasses to escape. Of course they fill with mud when off road, clean them out afterwards when washing the vehicle to maintain performance and pad life.
Performance Driven Brake Discs
With overweight four-wheel drive vehicles with oversize tyres, it's important to find a set of brake pads that really do perform. A heavily laden expedition vehicle will quickly overheat brakes, very large tyres fitted to off road vehicles also require extra brake pedal pressure to stop them turning. Many so-called performance pads are better suited to sports type driving styles where heat is required and can be maintained to enable the pads to really work. Even some well-known brands require the temperature to build up before they start to work effectively.
To get the best from Terrafirma Cross Drilled and Grooved (CDG) brake discs we recommend the use of high quality brake pads such as Lockheed or TRW. These pads give good bite from cold, work well off road especially in low range with high torque engines and transmissions driving against the brakes. They have high wear resistance, low noise and above all when combined with Terrafirma CDG brake discs give a much improved braking performance.
| VEHICLE | F/R | TYPE | PART NO |
| FREELANDER 1 |
|
||
| 1.8P and 2.0D 2001 On | Front | Solid | SDB100830 |
| 2.0 TD4 and 2.5 V6 | Front | Vented | SDB101070CDG |
| DISCOVERY 1 & RANGE ROVER CLASSIC |
|
||
| 2.0P, 200TDI, 300TDI, V8, CARB & V8 EFI | Front | Solid | LR017951CDG |
|
|
Front | Vented | LR017952CDG |
| Rear | Solid | LR017953CDG | |
| DISCOVERY 2 |
|
||
| TD5 and V8P 1998 TO 2004 | Front | Vented | SDB000380CDG |
| TD5 and V8P 1998 TO 2004 | Rear | Solid | SDB000470CD |
| DISCOVERY 3 |
|
||
| TDV6 and 4.0P | Front | Vented | SDB000604CDG |
| 4.4P | Front | Vented | SDB000614CDG |
| TDV6 and 4.0P | Rear | Vented | SDB000636CDG |
| 4.4P | Rear | Vented | SDB000646CDG |
| 4.4P with DYNAMIC PACK | Rear | Vented | SDB000646CDG |
| DISCOVERY 4 |
|
||
| TDV6 and 5.0P | Front | Vented | SDB000624CDG |
| TDV6 and 5.0P | Rear | Vented | SDB000636CDG |
| DEFENDER 90 |
|
||
| Front | Solid | LR017951CDG | |
| Front | Vented | LR017952CDG | |
| Rear | Solid | LR017953CDG | |
| DEFENDER 110/130 |
|
||
| Salisbury Rear Axle 1994 to 2002 | Front | Solid | LR017951CDG |
| Front | Vented | LR017952CDG | |
| Rear | Solid | LR017953CDG | |
| Rover Rear Axle 2002 On | Rear | Solid | LR018026CDG |
| RANGE ROVER P38 |
|
||
| 2.5D, 4.0P, AND 4.6P | Front | Vented | NTC8780CDG |
| 2.5D, 4.0P, AND 4.6P | Rear | Solid | SDB000470CDG |
| RANGE ROVER L322 |
|
||
| TD6, TDV8 and V8P | Front | Vented | LR031843CDG |
| TD6, TDV8 and V8P | Rear | Solid | SDB000211CDG |
| RANGE ROVER SPORT |
|
||
| TDV6, TDV8, 4.2P, 4.4P And 5.0P | Front | Vented | SDB000624CDG |
| TDV6, TDV8, 4.2P, 4.4P And 5.0P | Rear | Solid | SDB000646CDG |
Explore Terrafirma Break Discs With John Craddock
Terrafirma Break Discs are now available to buy online from John Craddock Ltd. A leading name in touch Land Rover parts and accessories, this world renowned brand is your first port of call for brake pads, suspension parts, bumpers, wheels, sroage and more. Explore Terrafirm parts and accessories with us today, or contact us for more information.
